Configuration:

• Floor tray (900 x 1000 x 180 mm)

• Rear ABS panel

• Reinforced glass on both sides + aluminum frame

• Vinyl curtain + fixed frame

• ABS ceiling

• U-bolt set for securing the shower

Transportation and installation fees are not included.
The booth is designed for very simple assembly, so self-installation is not difficult.

This is a must-have product for manufacturing plants handling hazardous materials,

laboratories, and school science rooms.
We proudly operate one of the very few factories in Korea that produce this type

of product at an affordable price.
This is the 2023 new model: USB-900.
The floor dimensions are 900 x 1000 mm, and the height is 2500 mm.
If the installation site has a low ceiling, the height can be customized

(additional charges may apply).
The entrance width is 900 mm.

To emphasize safety, yellow and black safety stripes are attached to the shower.
A durable vinyl curtain is installed at the entrance, allowing easy access in emergencies

and preventing water from spilling outside.

lattice frame has been added on the sides to prevent accidents.

The vinyl curtain is split into two sections and features Velcro strips

for easy installation.

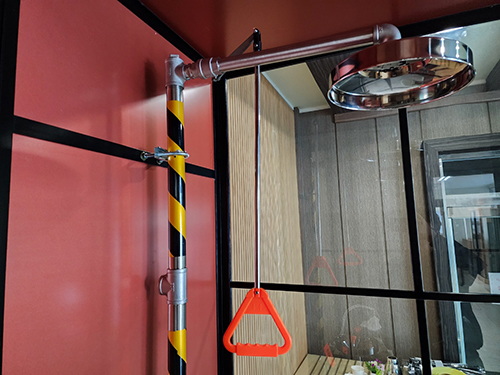

In an emergency, pulling the handle releases a large amount of water

instantly from the overhead showerhead.

The water supply connection is located at the rear, beneath the U-bolt.

Wrap Teflon tape around the included reducer bushing and connect a 15 mm pipe.

While the unit in the showroom is simply placed for display, the actual

shipped product includes four pre-drilled holes in the floor tray, with

fixing bolts and nuts provided for easy floor mounting.

This unit includes an eye wash station.

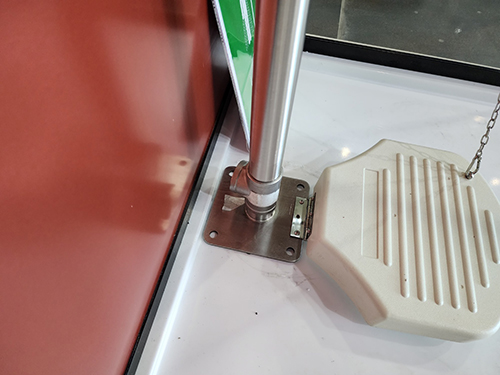

To operate the eye wash, push the hand lever or step on the foot

pedal to release the water.

The shower unit is fixed to the lower tray and secured to the upper

structure using a U-bolt.

This is an installation case of a previous model—the absence of side

lattice frames is the main difference.

This is the USB-900 emergency shower booth, equipped with

a domestically produced emergency shower unit.
