    A premium product built on superior technology and extensive know-how.

    Modular Shower Booth

    A premium product built on superior technology and extensive know-how.

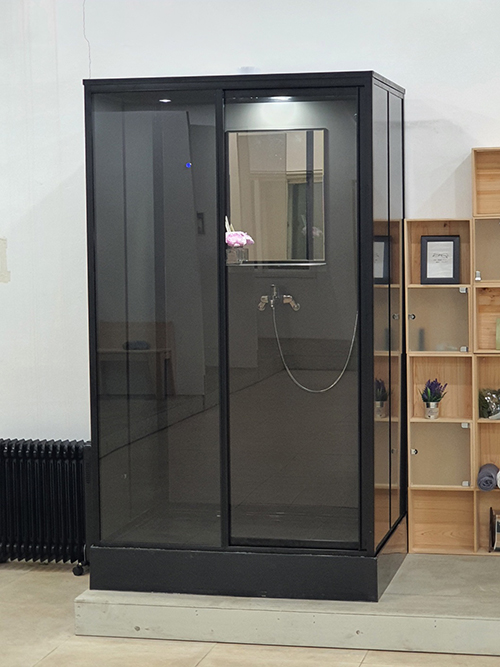

    Modular Shower Booth Space 1210 Deluxe

    Application Fitness centers, massage clinics, personal training studios, yoga studios, skincare salons – large modular shower booth.

    List

    본문

    Detail view




    Model: Space1210 Deluxe


    Dimensions: 1200 × 1000 × 2150 mm


    Optional Add-ons:

    • Washbasin

    • Black-coated wooden platform (for pipe coverage): 1220 × 1300 × 150 mm


    Features:

    1. A premium shower booth with a luxurious design featuring a black frame, black tray, black/gray panels, and bronze tempered glass.

    2. Made with top-grade aluminum and lightweight materials—durable and resistant to damage.

    3. Affordable nationwide delivery, and easy assembly allows anyone to build a functional shower room at minimal cost.

    4. Built with high-quality materials and long-standing expertise for strength and reliability—unlike Chinese-made alternatives, it comes with full after-sales support and parts availability.


    Applications:
    Quick and easy-to-install shower unit without waterproofing or tiling required.
    Ideal for:

    • Gyms

    • PT studios

    • Massage clinics

    • Skin care salons

    • Yoga & Pilates centers

    • Staff shower rooms, and more


    Configuration:

    1. Waterproof shower tray

    2. Sliding door (bronze tempered glass with metal frame) + 3 wall panels

    3. Ceiling with built-in light and exhaust fan

    4. Accessories: shower faucet (dual use), mirror, soap shelf








    SPACE 1210 – Plumbing Preparation Guide




    Hot and cold water supply pipes must be installed on the back wall of the shower booth using 15mm piping.
    The pipe ends must be finished with angle valves to allow connection to the shower faucet via high-pressure hoses.

    The drainage pipe must be embedded in the floor and should be at least 50mm in diameter.
    The system is designed to connect using a 40mm flexible hose typically used for bathtubs or sinks.

    If the drainage pipe is exposed on the floor surface, an additional deck must be constructed to cover it before installation.





    Information on plumbing preparation and installation methods can be found in the technical documents above.
    Inside the “Installation Drawings” section, you’ll also find an assembly video.
    To watch the assembly video right now, click the YouTube link below:

    For more information on installation methods, please refer to the blog below:
