Size: 1300 × 1150 × 2120 mm

Features:

Constructed with aluminum metal boards for enhanced safety.

Unique design with a privacy window for a stylish touch.

Technology & Expertise:

Backed by 30 years of manufacturing experience and a 33,000㎡ (10,000 pyeong) self-owned factory with full in-house development, design, and production capabilities.

① Can be installed in any type of space.

② Easy installation using a patented joint system that requires no screws.

(Shipped in semi-assembled condition / Required tools: screwdriver, spanner)

③ Easy to dismantle and relocate without damaging the product, as no screws are used.

④ Waterproof Tray: Manufactured using in-house vacuum forming technology, reinforced with eco-friendly urethane instead of FRP.

The toilet position can be specified (left or right) when placing your order.

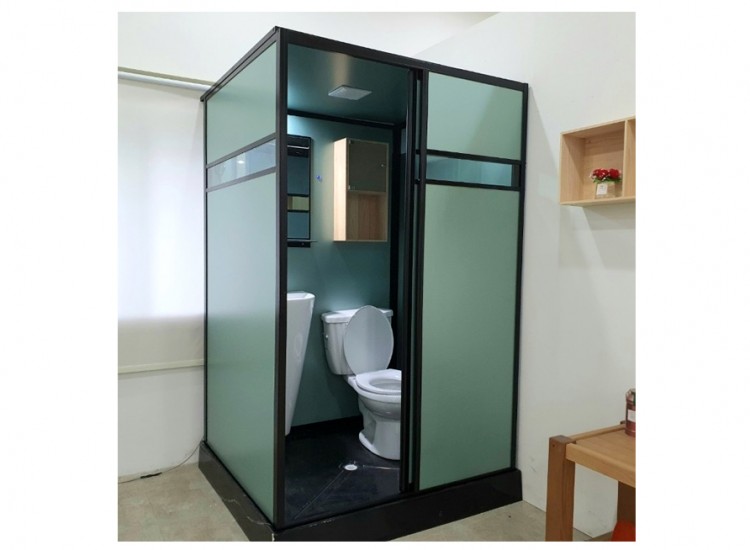

(This photo shows a right-side toilet configuration.^^)

Model Name: HERB1300 (Black & Gold)

Model Name: HERB1300 (Black & Gold)

Size: 130011502120

Features:

1. The easiest installation of a bathroom in the most difficult housing structures.

2. Ideal for minimal space usage, perfect for one-room apartments and goshiwons.

3. A freestanding type that can be installed anywhere with water and drainage facilities, such as in glamping tents, even without walls.

4. Easy assembly and disassembly, allowing anyone to install it, saving costs, and enjoying the DIY experience.

5. Exceptionally affordable price, top-quality materials, and produced by a leading company with 28 years of experience. All necessary components for installation are provided.

6. The design features a luxurious black & gold aluminum composite panel, creating a high-end aesthetic. The color combination can be customized to black, gold, or white, depending on stock or design agreement.

7. Both black & gold aluminum panels or bronze glass with a sheet can be used for the door design.

Note: This product is domestically produced, not Chinese-made, and can be used as a shower-only model without the toilet, sink, or storage cabinet.

Applications: Can be installed anywhere that requires shower facilities without waterproofing or tile finishing. Ideal for spaces such as one-room apartments, goshiwons, timber houses, mobile homes, container houses, glamping tents, etc.

Components:

• Waterproof board, door and wall panels, ceiling

• Toilet, sink, combined faucet

• Hinoki wood storage cabinet, lighting, exhaust fan





The wooden platform being shipped in 2024 is chocolate brown in color.

HUB-1300 Plumbing Preparation

1. Hot and cold water must be prepared with 15mm piping on the back wall behind the washbasin.

The pipe ends must be finished with angle valves to connect to the shower faucet using high-pressure hoses.

2. The drainage pipe must be embedded in the floor and prepared with a pipe of at least 50mm in diameter.

It is designed to connect with a 35mm flexible hose for bathtubs (or sinks).

If two drainage pipes are prepared, the washbasin and shower drain can be connected separately.

If only one is prepared, the washbasin and drain should be connected using a Y-fitting and then inserted into the prepared drain pipe.

3. A 100mm PVC pipe for the toilet must be prepared in the correct position.

Information on plumbing preparation and installation methods can be found in the technical documents above.

Inside the “Installation Drawings” section, you’ll also find an assembly video.

To watch the assembly video right now, click the YouTube link below:

https://youtu.be/4g9sQUmUWZQ

For more information on installation methods, please refer to the blog below:

https://blog.naver.com/pks0079
